stream.h File Reference

Objects representing a single das stream. More...

#include <stdbool.h>
#include <das2/packet.h>
#include <das2/dataset.h>

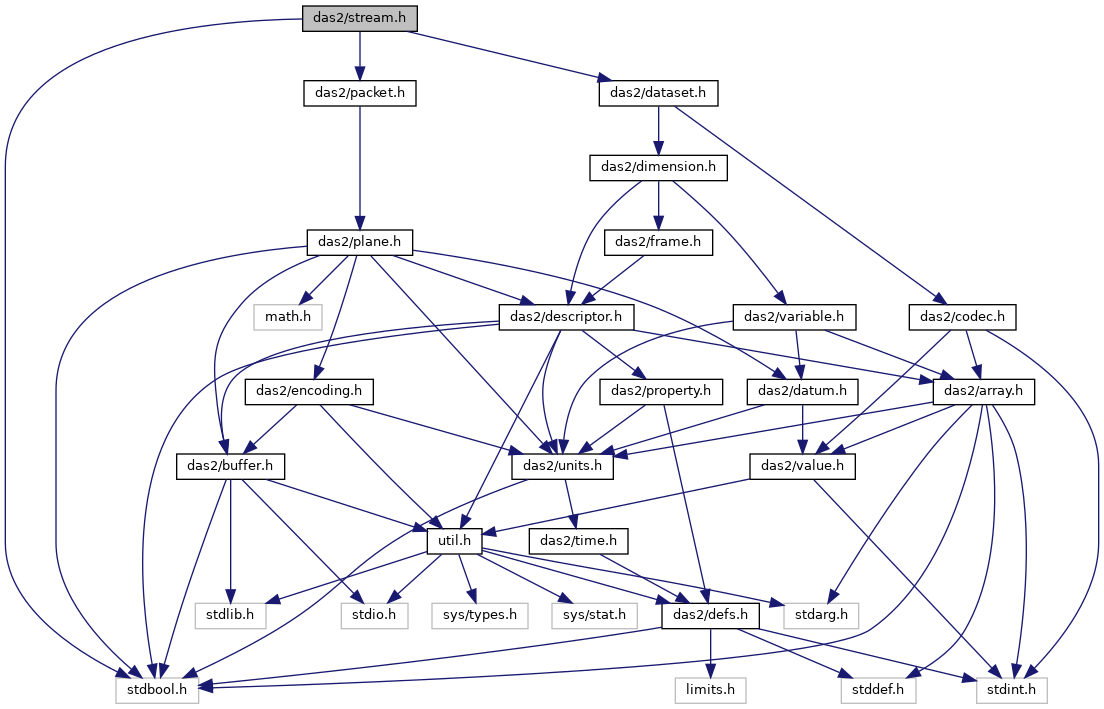

Include dependency graph for stream.h:

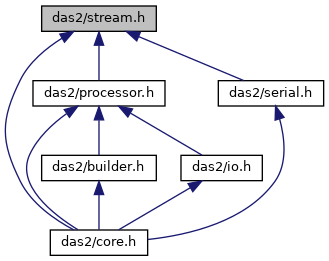

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	DasStream
	Describes the stream itself, in particular the compression used, current packetDescriptors, etc. More...

Macros
#define	StreamDesc   DasStream
	Compatability macro For backwards compatability, all functions with the name pattern DasStream are also have a macro alias to StreamDesc.

Functions
DAS_API int	DasStream_nextFrameId (const DasStream *pThis)
	Get the next open frame ID. More...
DAS_API bool	DasStream_isValidId (const DasStream *pThis, int nPktId)
	Check to see if an packet ID has been defined for the stream. More...
DAS_API int8_t	DasStream_getNumFrames (const DasStream *pThis)
	Return the number of frames defined in the stream.
DAS_API int8_t	DasStream_getFrameId (const DasStream *pThis, const char *sFrame)
	Get a frame index given it's name. More...
DAS_API DasDesc *	DasDesc_decode (DasBuf *pBuf, DasStream *pSd, int nPktId, int nModel)
	Packtized Stream Descriptor Factory Function. More...

Detailed Description

Objects representing a single das stream.

Function Documentation

DasStream_nextFrameId()

DAS_API int DasStream_nextFrameId

(

const DasStream *

pThis

)

Get the next open frame ID.

Returns

then next valid frame ID or a negative DasErrCode if no more frames are allowed

DasStream_isValidId()

DAS_API bool DasStream_isValidId	(	const DasStream *	pThis,
		int	nPktId
	)

Check to see if an packet ID has been defined for the stream.

Parameters

pThis	The stream to check
nPktId	The ID in question

Returns

true if a packet of that type is defined on the stream false otherwise

DasStream_getFrameId()

DAS_API int8_t DasStream_getFrameId	(	const DasStream *	pThis,
		const char *	sFrame
	)

Get a frame index given it's name.

Returns

negative DasErrCode if there's no frame for the given name

DasDesc_decode()

DAS_API DasDesc* DasDesc_decode	(	DasBuf *	pBuf,
		DasStream *	pSd,
		int	nPktId,
		int	nModel
	)

Packtized Stream Descriptor Factory Function.

Parameters

pBuf	A buffer containing string data to decode.
pSd	- The Stream descriptor, if it exists. May be NULL.
nPktId	- The packet tag ID number corresponding to this top-level descriptor
nModel	- The expected data model to parse into, one of STREAM_MODEL_MIXED, STREAM_MODEL_V2, or STREAM_MODEL_V3

Returns

Either a top level Descriptor object. The specific type dependings on the data received, or NULL if the input could not be parsed.
