packet.h File Reference

#include <das2/plane.h>

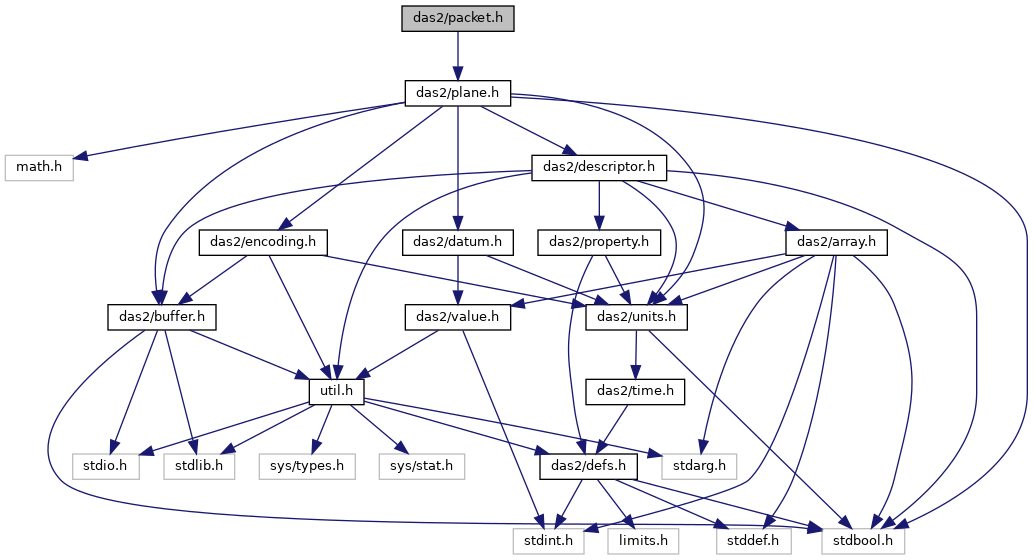

Include dependency graph for packet.h:

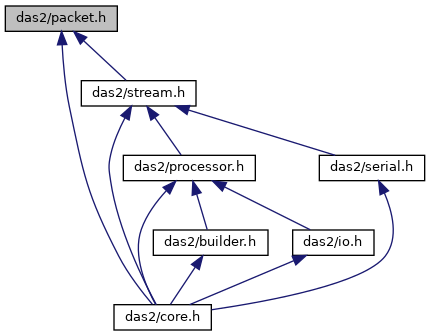

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	PktDesc
	Holds information for a single packet type in a Das2 stream. More...

Macros
#define	MAXPLANES   100
	maximum planes allowed in a packet

Functions
DAS_API void	del_PktDesc (PktDesc *pThis)
	Free a packet descriptor and all it's contained objects. More...
DAS_API bool	PktDesc_equalFormat (const PktDesc *pPd1, const PktDesc *pPd2)
	Check for packet descriptor format equality. More...
DAS_API int	PktDesc_getPlaneIdx (PktDesc *pThis, PlaneDesc *pPlane)
	Get the plane number within this packet description. More...
DAS_API PlaneDesc *	PktDesc_getPlaneByName (PktDesc *pThis, const char *name)
	Get a Plane Descriptor for the plane with the name name. More...
DAS_API PlaneDesc *	PktDesc_getPlaneByType (PktDesc *pThis, plane_type_t ptype, int iRelIndex)
	Get the Ith plane of a given type. More...

Function Documentation

del_PktDesc()

DAS_API void del_PktDesc

(

PktDesc *

pThis

)

Free a packet descriptor and all it's contained objects.

Parameters

pThis

The packet descriptor to free, the caller should set the pointer to NULL after this call.

PktDesc_equalFormat()

DAS_API bool PktDesc_equalFormat	(	const PktDesc *	pPd1,
		const PktDesc *	pPd2
	)

Check for packet descriptor format equality.

This function checks to see if two packet descriptors define the same data note that the StreamDesc parent of each need not be the same, nor are the descriptors required to have the same current data values.

Parameters

pPd1
pPd2

Returns

true if both packet descriptors provide the same definition, false otherwise

PktDesc_getPlaneIdx()

DAS_API int PktDesc_getPlaneIdx	(	PktDesc *	pThis,
		PlaneDesc *	pPlane
	)

Get the plane number within this packet description.

Parameters

pThis	the packet descriptor to query
pPlane	a pointer to the plane who's index is required

Returns

a number from 0 to 99 if successful or -1 if the plane pointed to by pPlane is not part of this packet description

PktDesc_getPlaneByName()

DAS_API PlaneDesc* PktDesc_getPlaneByName	(	PktDesc *	pThis,
		const char *	name
	)

Get a Plane Descriptor for the plane with the name name.

Returns

A pointer to the plane, or NULL if no plane with the given name is present in the packet descriptor

PktDesc_getPlaneByType()

DAS_API PlaneDesc* PktDesc_getPlaneByType	(	PktDesc *	pThis,
		plane_type_t	ptype,
		int	iRelIndex
	)

Get the Ith plane of a given type.

Parameters

pThis	The packet descriptor to query
ptype	The plane type, one X, Y, Z, YScan
iRelIndex	The number of the plane of a given type to find. The lowest index will be 0 for a given type.

Returns

A pointer to the plane, or NULL if there are not at least iRelIndex + 1 planes of the given type in the packet
